Partes del micrómetro de exteriores

Map Quiz

Played 4
Create copy

About this activity

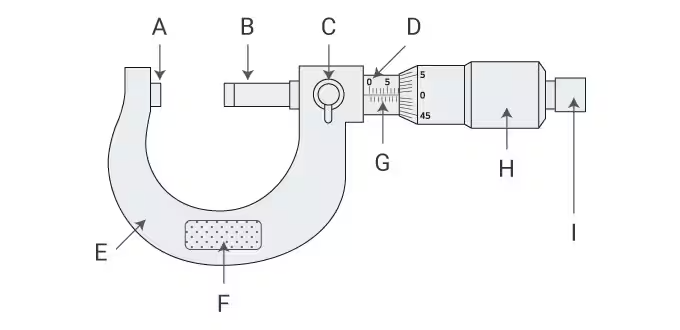

Partes principales de un micrómetro de exteriores.

Created by

Adriana Reynoso Segovia
Adriana Reynoso Segovia
Mexico

Download the paper version to play

Make your own free game from our game creator
Compete against your friends to see who gets the best score in this game
Make challenge

Top Games

 %
Anonymous
Anonymous
 %
%
%
You have exceeded the maximum number of games you can print with your current Plan.

To print as many games as you want, you need an Academic Plan or a Commercial Plan.

Get Academic Plan
Print your game
Partes del micrómetro de exteriores


Partes del micrómetro de exterioresOnline version

Partes principales de un micrómetro de exteriores.

by Adriana Reynoso Segovia
QR
1 Yunque o tope de medición
QR
2 Husillo
QR
3 Tuerca de bloqueo o freno de husillo (abrazadera)
QR
4 Cilindro fijo o manguito
QR
5 Arco o marco C
QR
6 Placa resistente al calor
QR
7 Escala nonio
QR
8 Tambor
QR
9 Trinquete

Explicación

Su función principal es proporcionar un punto de referencia sólido y preciso para el husillo móvil.

Sus partes incluyen la cara de medición (punta), el vástago roscado y el extremo conectado al tambor móvil.

Su función principal es inmovilizar el husillo una vez que se ha realizado la medición, permitiendo retirar el instrumento de la pieza sin que la lectura se altere.

Actúa como el punto de referencia contra el cual gira el tambor móvil (o dedal) para realizar la medición.

Su rigidez es crítica para garantizar mediciones repetibles y exactas, especialmente al medir circunferencias o superficies cilíndricas.

Suele estar atornillada al marco en forma de "C" y no transmite la temperatura de la mano al armazón principal del instrumento.

El uso del nonio permite mediciones con una exactitud extrema, siendo fundamental para verificar tolerancias muy estrictas.

Es la interfaz de operación principal para el ajuste fino de la medida en el micrómetro.

Al girarlo hasta escuchar "clics" (generalmente tres), garantiza que la fuerza aplicada sea la misma en cada medición, evitando errores por exceso de fuerza, asegurando la precisión y protegiendo la pieza.
