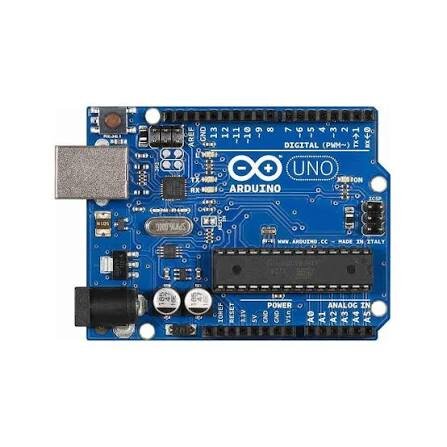

El Arduino Uno y sus partes


El Arduino Uno y sus partesOnline version

Identifica las características o las partes del Arduino Uno

by ROGER EMANUEL LOPEZ ESTRADA
1 Puerto o conector USB 2 Pinesnanalogivos 3 Alimentación 4 Cristal 5 Botón y Pin de Reinicio 6 Regulador de voltaje 7 Alimentación 8 Pines Digitales 9 Pines de Poder o de salida

Explicación

Este nos permite conectar nuestro Arduino a al PC , cargar nuestro código y alimentar la tarjeta.

Controlador automatizar y gestionar procesos y dispositivos electrónicos de forma autónoma mediante un programa grabando en su memoria.

Este circuito integrado es el moderador entre el Micro controlador y el software o C , es decir se encarga de convertir la información del Micro controlador hacia la información que va a tu computadora .

El ciclo reloj , la marca el pulso o tiempo de trabaja al Micro controlador para que este trabajo quede perfectamente .

El botón de reinicio esta directamente conectado al Pin numero uno (1) Para Hacer correy ejecutar todo el programa .

Permite una salida estable de cinco (5)voltios independientemente del voltaje de entrada

Nos permite alimentar nuestra tarjeta con voltaje de corriente continua de Siete (7) a Doce voltios

Estos detentan si hay un cero (09 o un Uno (1) lógico . Se utiliza para pulsar de botones o dispositivos que manda o recibe información digital .

A trabes de estos se pueden alimentar componentes de requiera de poca alimentación como 3, 3 o 5 voltios
