el arduino uno y sus partes

Map Quiz

Played 0
Create copy

About this activity

indentifica las partes del arduino uno

Created by

RAFAEL DARIO SERRUDO
RAFAEL DARIO SERRUDO
Bolivia

Download the paper version to play

Make your own free game from our game creator
Compete against your friends to see who gets the best score in this game
Make challenge

Top Games

 %
Anonymous
Anonymous
 %
%
%
You have exceeded the maximum number of games you can print with your current Plan.

To print as many games as you want, you need an Academic Plan or a Commercial Plan.

Get Academic Plan
Print your game
el arduino uno y sus partes


el arduino uno y sus partesOnline version

indentifica las partes del arduino uno

by RAFAEL DARIO SERRUDO

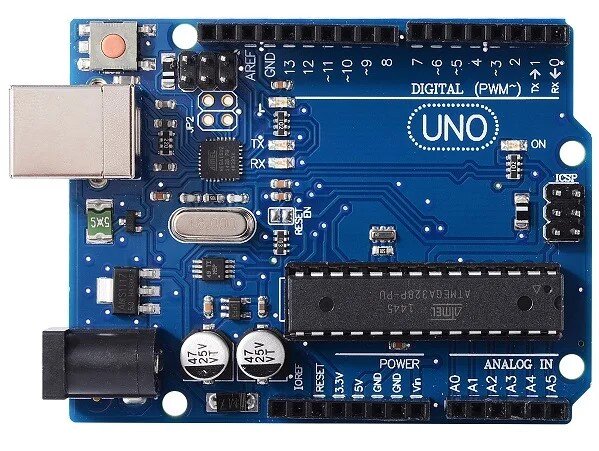

1 Boton de reset 2 micro controlador 3 conector USB 4 entradas y salidas digitales 5 entadas analogicas 6 entrada de alimentacion 7 cristal oscilador 8 regulador 5v 9 control USB 10 regulador 3v3 11 diodo de proteccion

Explicación

(RESET) del Arduino Uno es un interruptor físico que reinicia el microcontrolador y vuelve a ejecutar el programa desde la primera línea de código.

Este chip funciona como el "cerebro" de la placa; es el componente principal que almacena y ejecuta el código que creas en la computadora.

sirve principalmente para programar la placa desde la computadora y para alimentarla con energía eléctrica

son los puertos físicos que permiten a la placa comunicarse con el mundo exterior, recibiendo datos de sensores o enviando órdenes a actuadores como motores y luces

pines que permiten leer señales de voltaje variable y continuo entre 0 y 5 voltios

pines que permiten leer señales de voltaje variable y continuo entre 0 y 5 voltios

es un componente de cuarzo que actúa como el reloj o metrónomo del microcontrolador

componente integrado en la placa que transforma un voltaje de entrada alto en una salida estable de 5 voltios

es el puerto físico y el sistema de circuitos que permite conectar la placa a una computadora u otro dispositivo para alimentarla de energía, cargar programas y enviar datos en tiempo real

es un pequeño chip dedicado que reduce la corriente de la placa para ofrecer una salida estable de 3.3 voltios en el pin marcado como

es un componente de seguridad conectado en la entrada de alimentación externa (puerto Jack) que evita daños si se conectan los cables positivo y negativo al revés
