Answer the questions to the best of your ability, you may use your engineering notebook. Good luck!
1
A design team introduced existing technology into clothing that charges small electronic devices using simple body motions. Which term best describes this product?
2
An engineering team designing a new product generates and explores several different ideas. Which of the following is most appropriate for the team to do next?
3
Which phrase does NOT apply to brainstorming?
4
Samantha and Wes are engineers developing a new electrical storage battery. They have determined that the designs they wish to pursue require a technology that does not exist. Knowing this, what should Samantha and Wes do next?
5
Which element will enhance the visual appearance of a 3-D sketch?
6
Which type of line does the arrow indicate?
7
Which information is necessary to locate a hole's position in an orthographic projection?
8

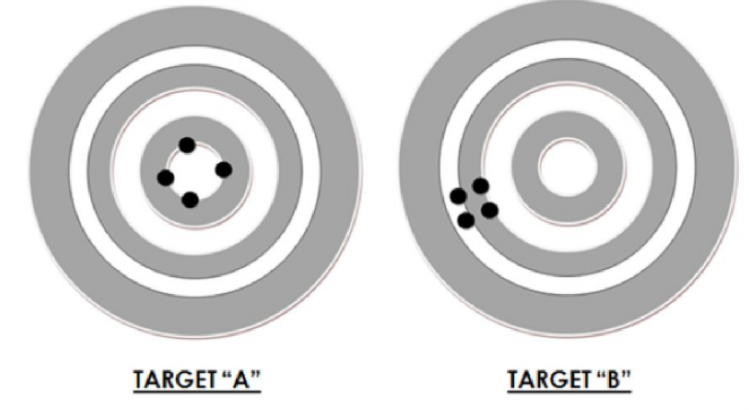

The images each show four attempts to approximate the center of the target, illustrating the concept of accuracy and precision. Based on the images, select the correct statement about precision and accuracy.
9
Volume, mass, center of gravity, and density are examples of which of the following?
10
Parallel, tangent, and coincident are examples of which of the following?
11
Which process involves disassembling and analyzing a part, usually in order to understand its function?
12
A team is reverse engineering a new onboard communication system that is advertised to provide subscription-based communications for in-vehicle security, hands-free calling, turn-by-turn navigation, and remote diagnostics systems. In which stage of the reverse engineering process is the team engaged while observing the operation and feature performance of the new system?
13
Aluminum is a common material used for soft drink containers. Smelting of alumina from bauxite is what step in the product life cycle to produce aluminum containers?
14
Which term best describes the guidelines, protocols and rules of conduct that design teams develop?
15
Lines extending from a point or more points to make a dimension.
16
Dimensioning to hidden lines should be ______
17
The image is an element of which visual design principle?
18
All pages in an engineering notebook are not required to be numbered.
19
The two types of research are _______ and ____________
20
Involves the research developing most of the research themselves, is more expensive and time consuming.
21
An engineering notebook cannot be used as a legal document in court
22
All work in an engineering notebook must be written with a
23
What is the preferred method for inserting documents into your engineering notebook?
24
When brainstorming you should make sure not to exceed 15 ideas.
25
The big four engineering disciplines are:
26
Adding an ergonomic handle to the toothbrush is an example of
27
What is the name of this tool?
28
Dimensions should reflect actual size of the object, not the scaled size.
29
Do not include unnecessary dimensions.
30
It is ok to dimensioning to hidden lines.
31
How do you write the formula to get the SUM in Microsoft Excel?
32
How many mm are in a standard metric ruler?
33
What command do you use in Fusion to make a 2d sketch 3d?
34
What is the program called that we used to create 3d drawings on the computer?
35
Balance, Emphasis, Contrast, Rhythm, Proportion, Unity, and Economy are examples of:
36
Regular, random, gradated, and graduated are what type of principle of design?
37
Vertical, Horizontal, Curved, and Diagonal, are which type of element of design?
38
Why is reverse engineering used?
39
What are the stages of reverse engineering?

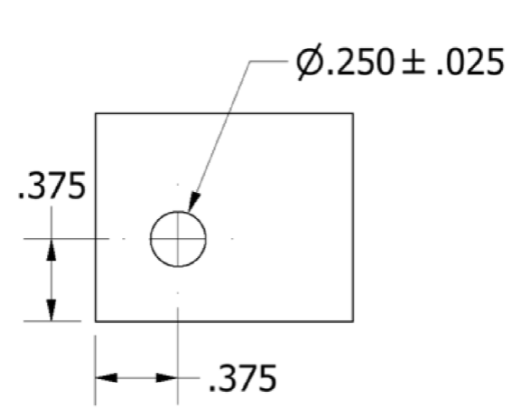

40
The front view of a part is shown above. What is the tolerance on the hole diameter?
|
