Compuerta Lógicas

Quiz

(11)
Demuestra tu conocimiento sobre compuertas lógicas.

Download the paper version to play

Edit icon Duplicate
Create challenge icon Create challenge
About Quiz
compuertas logicas
 Recommended age: 17 years old
136 times made

Created by

Maria Shirley Rodriguez Mejia
Maria Shirley Rodriguez Mejia
Colombia

Top 10 results

  1. 1
    Maria Shirley Rodriguez Mejia
    Maria Shirley Rodriguez Mejia
    00:30
    time
    100
    score
  2. 2
    pluquer@unemi.edu.ec
    pluquer@unemi.edu.ec
    04:48
    time
    100
    score
  3. 3
    EVELYN ANABEL GALLEGOS VELASQUEZ
    EVELYN ANABEL GALLEGOS VELASQUEZ
    09:05
    time
    100
    score
  4. 4
    David Valle
    David Valle
    02:38
    time
    90
    score
  5. 5
    Geanella Delmira Jiménez Uyaguari
    Geanella Delmira Jiménez Uyaguari
    03:49
    time
    90
    score
  6. 6
    ANGEL ROBERTO OREJUELA CALLE
    ANGEL ROBERTO OREJUELA CALLE
    08:12
    time
    80
    score
  7. 7
    Charles Acosta
    Charles Acosta
    08:34
    time
    80
    score
  8. 8
    DANNA PACHO
    DANNA PACHO
    06:51
    time
    70
    score
  9. 9
    GABRIEL DE JESUS ALCIVAR SALAZAR
    GABRIEL DE JESUS ALCIVAR SALAZAR
    06:58
    time
    70
    score
  10. 10
    ipueroc
    ipueroc
    04:40
    time
    60
    score
Do you want to stay in the Top 10 of this game?
Log in
to identify yourself.
Make your own free game from our game creator
Make quiz
Compete against your friends to see who gets the best score in this game
Make challenge

Top Games

  1. time
    score
  1. time
    score
time
score
time
score
You have exceeded the maximum number of games you can print with your current Plan.
To print as many games as you want, you need an Academic Plan or a Commercial Plan.
Get Academic Plan

Print your game


game-icon

Compuerta LógicasOnline version

Demuestra tu conocimiento sobre compuertas lógicas.

by Maria Shirley Rodriguez Mejia
1

La tabla de verdad de la compuerta lógica OR es:

2

El símbolo normalizado de la compuerta NAND es:

3

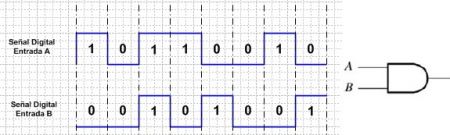

De acuerdo a las señales digitales de entrada de la compuerta AND, elija la señal digital de salida correspondiente:

4

La función lógica de la compuerta NOR es:

5

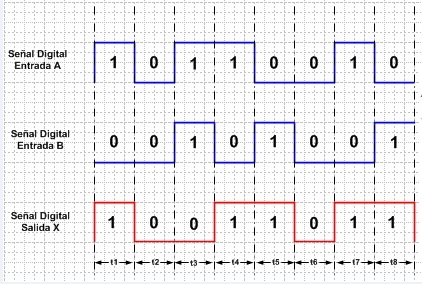

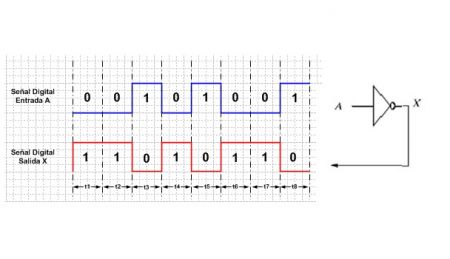

Las siguientes señales digitales de entrada y salida, corresponden a la compuerta lógica:

6

La tabla de verdad de la compuerta lógica X-OR es:

7

El simbolo normalizado de la compuerta OR es:

8

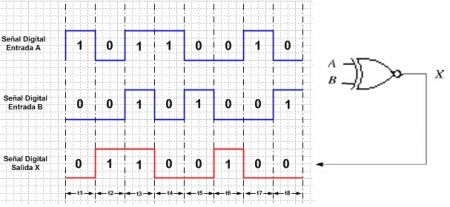

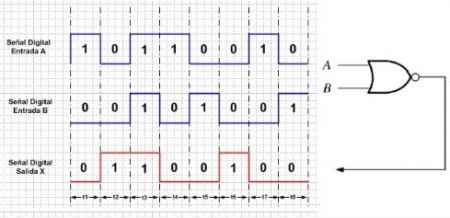

De acuerdo a las señales digitales de entrada de la compuerta NOR, elija la señal digital de salida correspondiente:

9

La función lógica de la compuerta AND es:

10

Determinar la compuerta lógica que falla de acuerdo a las señales digitales de entrada:
