Urinary System and Adrenals Ultrasound Image Review


Urinary System and Adrenals Ultrasound Image ReviewOnline version

Image-based quiz

by Hedy
1

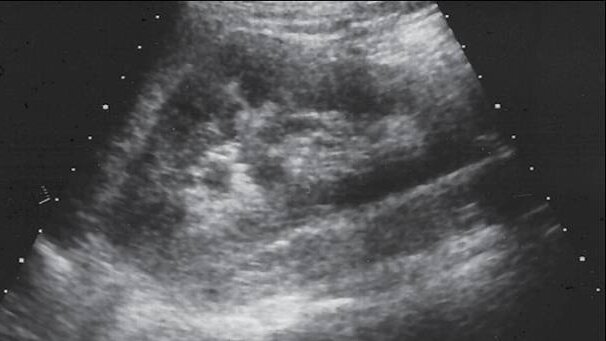

This image shows the most common renal fusion anomaly, which may mimic a solid mass: what is it?

2

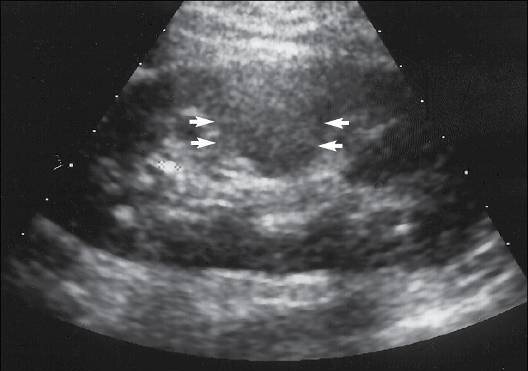

What is the normal renal variant seen here, characterized by prominent cortex extending between the renal pyramids?

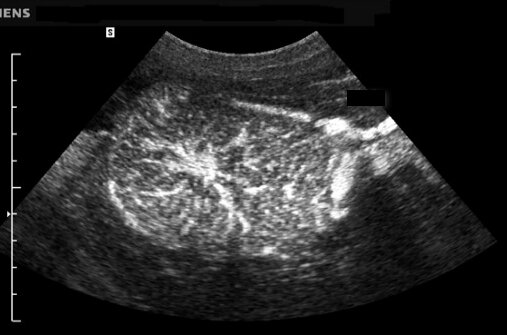

3

Which renal condition is suggested by a 3-day-old infant with enlarged echogenic kidneys?

4

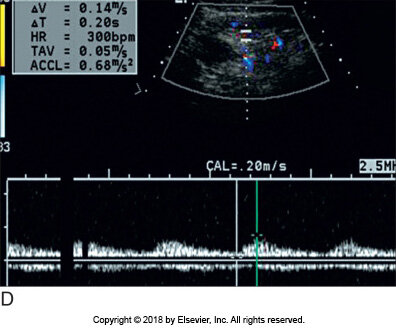

What is the waveform in this image, indicitive of renal stenosis?

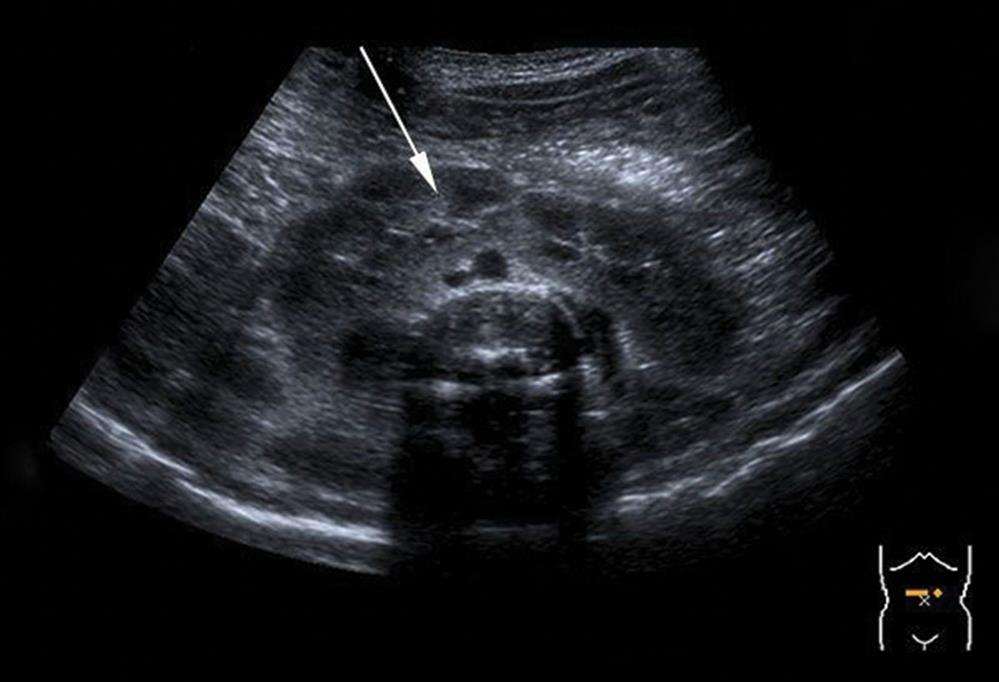

5

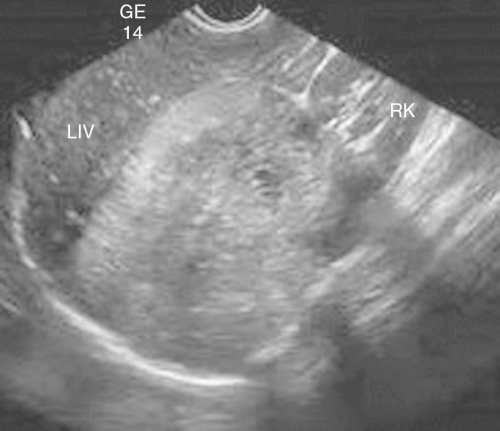

Identify the most common malignant adrenal tumor in pediatric patients shown here.

6

What benign renal tumor appears as a spoke-wheel pattern on imaging?

7

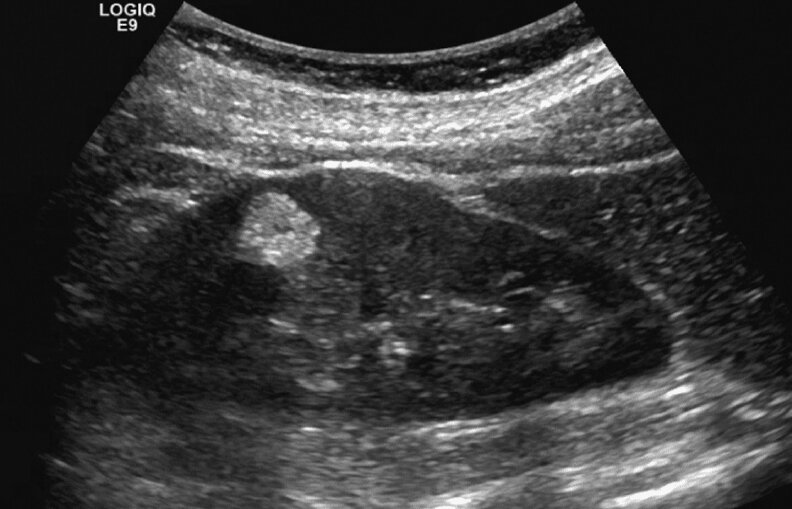

Most common benign renal tumor, composed of bloodvessels, fat, and muscle:

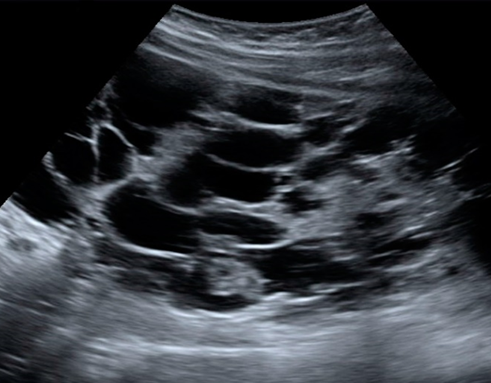

8

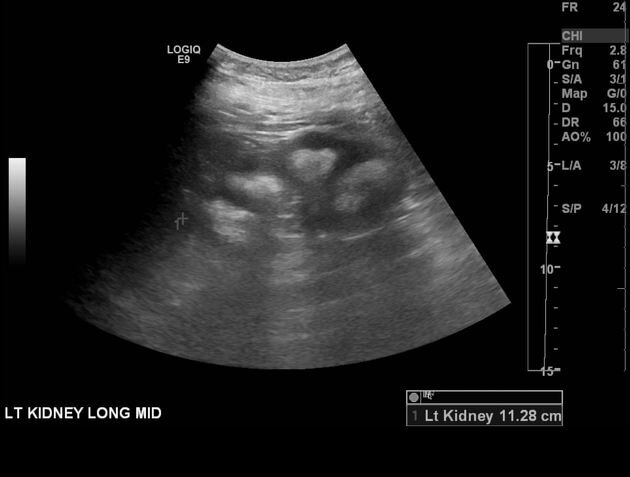

What is the term for the renal condition caused by obstruction from a stone leading to severe dilation?

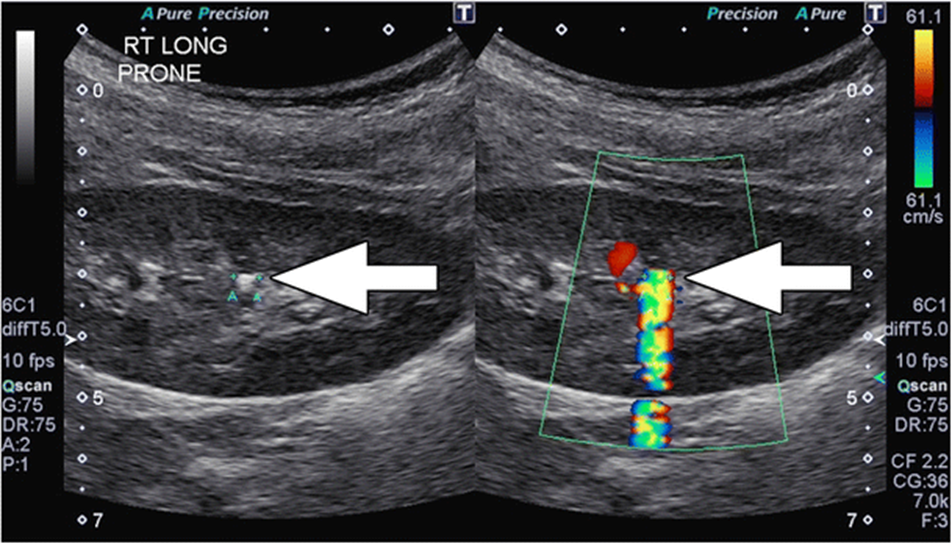

9

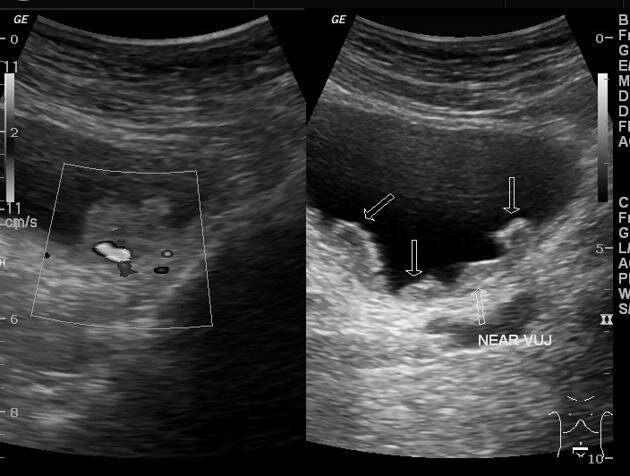

Which ultrasound artifact is seen in the right photo of the kidney?

10

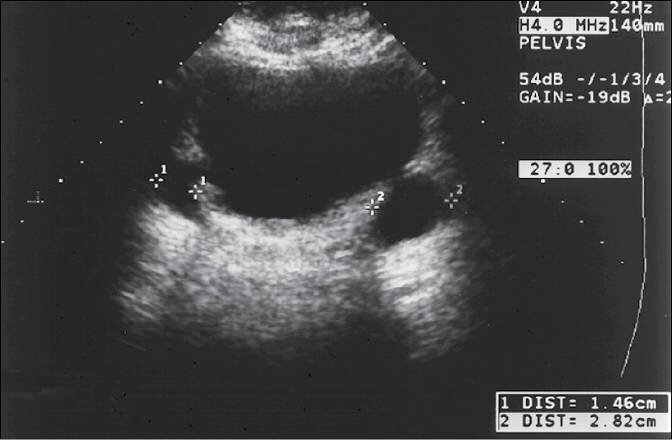

This image shows a bladder pathology. What is the diagnosis?

11

What is this renal variant, caused by the close proximity of the spleen?

12

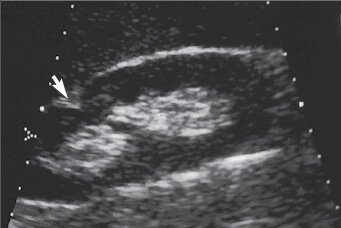

What is this triangular renal congenital defect and where is it usually seen?

13

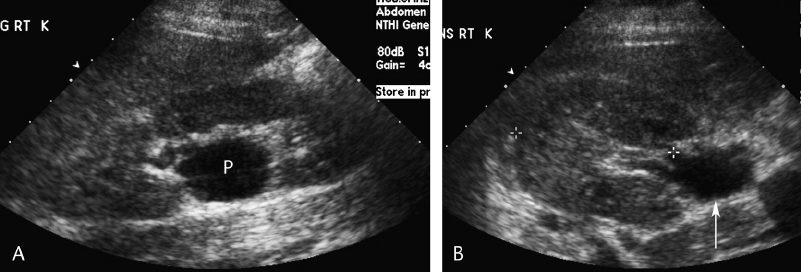

What is this normal renal variant, appearing as a cyst-like structure, simulating hydronephrosis? (A cystic area seen beyond the renal border.)

14

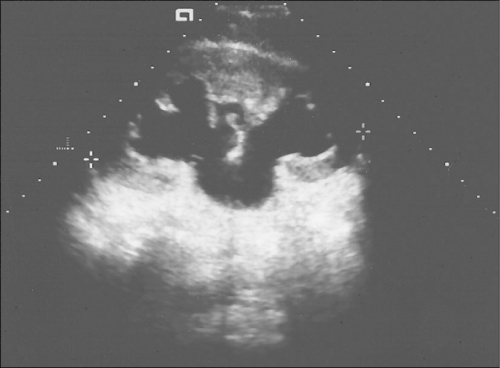

What anomaly is seen? (Candle sign seen)

15

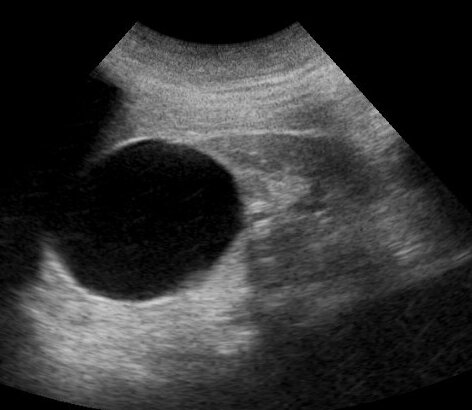

This solitary renal lesion is most likely?

16

This renal lesion is a?

17

This is a longitudinal image of the kidney of a young adult man. A similar appearance is also seen in the contralateral kidney. This is most likely:

18

This is a congenital malformation caused by cystic dilation of the distal collecting ducts (Ducts of Bellini):

19

Most common bladder cancer (and can also affect the kidneys):

20

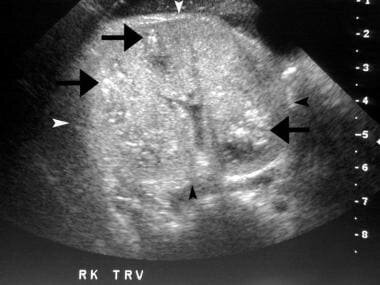

2 year old male is seen with the most common pediatric renal malignancy:

21

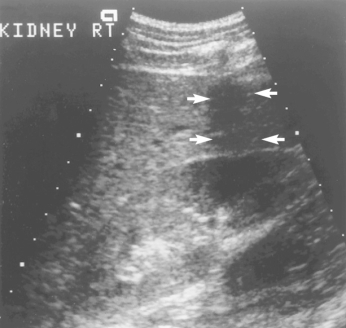

What is the probable cause of this artifact denoted by the arrows?

22

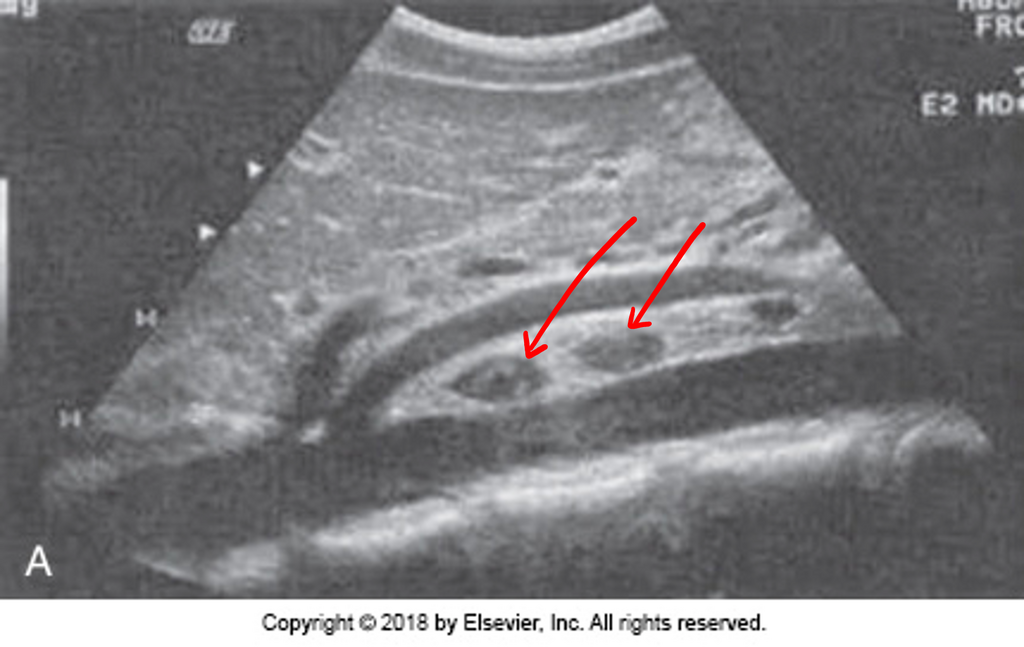

What is seen in this longitudinal image of the aorta and surrounding region? This may cause abdominal tenderness. (See arrows)

23

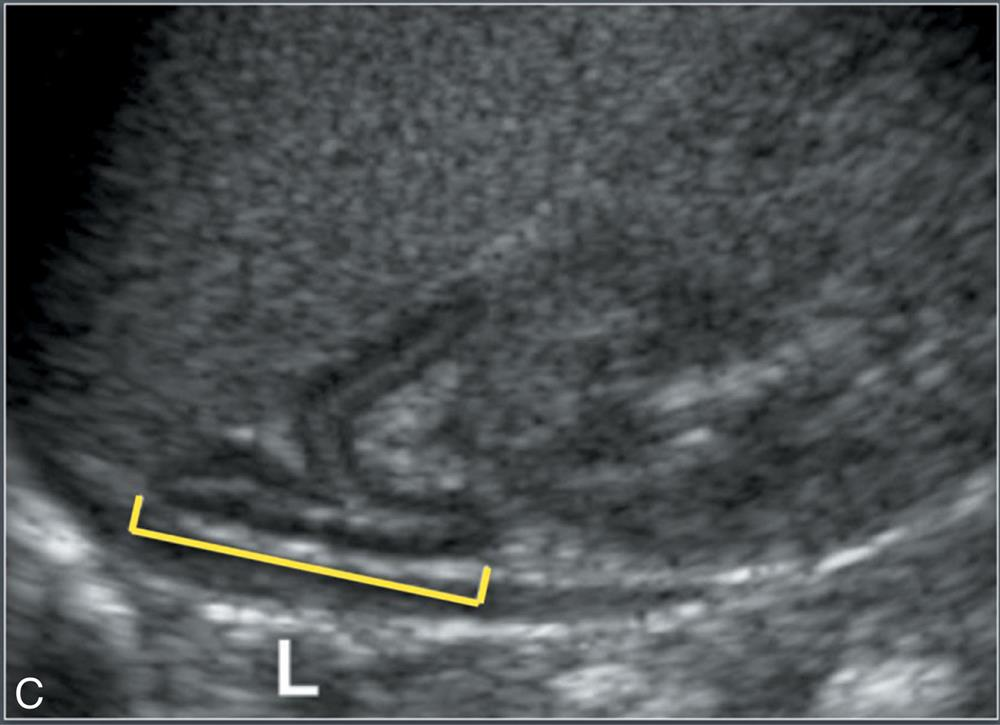

This is a longitudinal kidney image in a neonate. What do you see (indicated by the yellow bracket)?

Feedback

This is Horseshoe kidney

This is a Hypertrophied Column of Bertin

This is ARPKD (Autosomal recessive polycystic kidney disease)

This is a Tardus-Parvus waveform indicating a slow acceleration and decreased peak systolic velocity, characteristic of renal stenosis.

Neuroblastoma is the most common adrenal malignant tumor in children.

Oncocytoma is classically described with a spoke-wheel pattern.

Angiomyolipoma is the most common benign renal tumor, composed of bloodvessels, fat, and muscle:

Hydronephrosis results from obstruction such as stones.

Twinkle artifact is a known color Doppler artifact seen with stones.

Transverse bladder image with diverticula corresponds to bladder diverticulum.

Dromedary hump is the renal variant, caused by the close proximity of the spleen.

This congenital variant causing a triangular defect is a Junctional Parenchymal Defect, most commonly seen in the Upper Pole

This is an extrarenal pelvis.

These are ureteroceles.

This is a simple renal cyst.

This is a complex-appearing cyst.

This is most likely ADPKD.

This is Medullary Sponge Kidney

Most common bladder cancer is TCC.

The most common pediatric renal malignancy is nephroblastoms, also known as Wilm's tumor.

This is shadowing causes by the rib(s).

These are enlarged lymph nodes seen between the long aorta and SMA.

This is a normal adrenal glad of a neonate, with echogenic central region and hypoechoic cortex.
